Multivariate Linear Regression

Sacpy.MultLinReg

Math Euqation

\[y[idx] = slope[idx,0] * x[0] + slope[idx, 1] * x[1] + ... + intcp[idx]\]

parameter:

• x (np.ndarray): shape = (time, N) ; N is Number of factors

• y (np.ndarray): shape = (time,*number)

• cal_sim (Bool) : Whether to call function multi_linreg

• x’s dim0 must equal to y’dim0 !

Attribute:

• slope (np.ndarray): Slope, shape = [N,*number]

• intcpt (np.ndarray) : intercept , shape = [*number]

• R (np.ndarray) : multiple correlation coefficient , shape = [*number]

• pv_all(np.ndarray) : F test p value , shape = [*number]

• pv_i(np.ndarray) : F test p value of every infact, shape = [N, *number]

Example

Get the influence of IOD and clean the influence of simultaneous ENSO

%load_ext autoreload
%autoreload 2

import numpy as np
import sacpy as scp
import matplotlib.pyplot as plt

Get Nino3.4 Index and IOD Index

sst = scp.load_sst()['sst']
# get ssta
ssta = scp.get_anom(sst,method=1)
# calculate Nino3.4
Nino34 = ssta.loc[:,-5:5,190:240].mean(axis=(1,2))
# get IOD index
IODW = ssta.loc[:,-10:10,50:70].mean(axis=(1,2))
IODE = ssta.loc[:,-10:0,90:110].mean(axis=(1,2))
IODI = +IODW - IODE

X = np.vstack([Nino34,IODI]).T
# multiple linear regression
MLR = scp.MultLinReg(X,ssta)

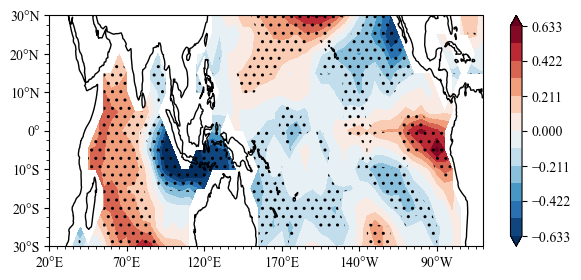

Plot the significance test and IOD index slope

import sacpy.Map
import cartopy.crs as ccrs
fig = plt.figure(figsize=[7, 3])
ax = plt.axes(projection=ccrs.PlateCarree(central_longitude=180))
lon ,lat = np.array(ssta.lon) , np.array(ssta.lat)
m = ax.scontourf(lon,lat,MLR.slope[1])
n = ax.sig_plot(lon,lat,MLR.pv_i[1],color="k",marker="..")
ax.init_map(stepx=50, smally=2.5)
plt.colorbar(m)

<matplotlib.colorbar.Colorbar at 0x158b4f070>

<Figure size 640x480 with 0 Axes>
